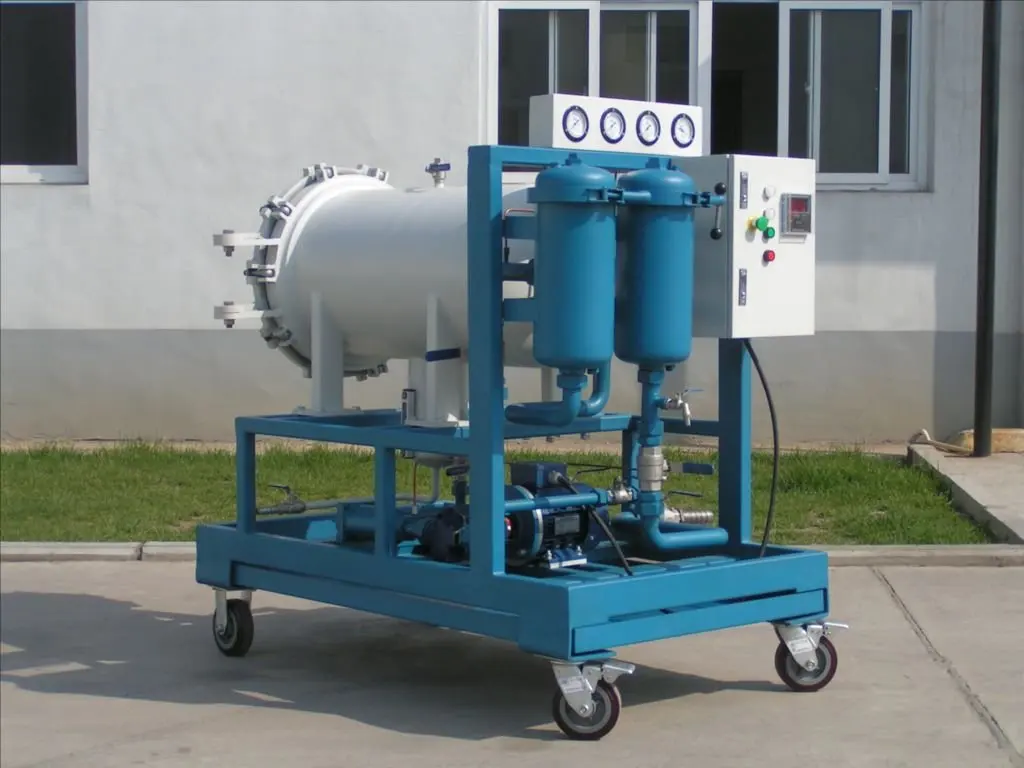

Product Application of Coalescence Dehydration Oil Filter

Coalescence dehydration oil filter consists of two systems: coalescence system and separation system, which play different roles respectively. The coalescing system consists of a group of coalescing filter elements. The coalescing filter element adopts a unique polar molecular structure. After passing through the filter element, the free water and emulsified water in the oil are coalesced into large water droplets and settled into the water storage tank under the action of gravity. The separation filter element of the separation system is supported by special hydrophobic materials. When the oil passes through the filter element, the water drops are gathered on the outer surface of the filter element until they settle into the water storage tank under the action of gravity.

The coalescing dehydration oil filter adopts "coalescing separation" technology for dehydration, with high dehydration efficiency and strong capacity. It is especially applicable to the separation of large amount of water in the oil. It has the incomparable advantages of vacuum method and centrifugal method, and can break all oil-water emulsification structures in the medium; Through the filtration of the particle filtration system, the cleanliness of the medium can be stably controlled within the required range of the system to ensure the cleanliness of the oil; Do not change the physical and chemical properties of the oil, and extend the service life of the oil; Low energy consumption and operation cost; Good system configuration and strong continuous operation.

The oil filter has five stages of filtration system:

The first stage oil suction filter is set at the suction inlet coarse filter to protect the oil pump and prolong the service life of the main filter.

The second stage pre-filter is located upstream of the coalescer, which can extend the life of the coalescer and reduce the content of particles in the liquid behind the coalescer.

The third stage filter coalesces and sinks the water in the oil.

The fourth stage separation filter further blocks the tiny water droplets in the oil for efficient separation.

The filter medium of the fifth-stage filter adopts the filter medium with high precision and dirt holding capacity, which can safely and efficiently purify the oil liquid.
